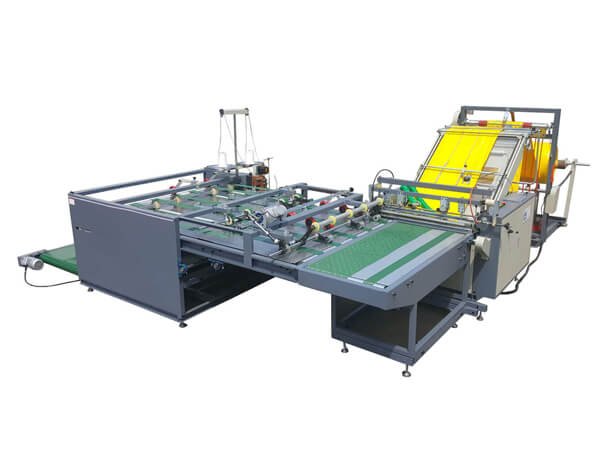

Automatic PP Woven Bag Cutting Machine and Sewing Machine

This machine is suitable to cut the PP woven fabric rolls both with or without lamination into pieces then stitch the bottom of the bag. Adopt fully motror control, no need air compressor, much stable and very low failure rate. Suitable for powder bags,flour bags,rice bags,feed bags, kraft paper bags and other woven bags. Since the machine can finish the processes of cutting & stitching of the bags in one line, so it can save labors and improve the quality of the bags evidently.

Model: RQF-900

Cutting Speed: 35-45pcs/min

Max.Diameter of Fabric Rolls: 1500mm

Cutting Width: 300-900mm

Cutting Length: 500-1500mm

Cutting Precision: ±2mm

Bottom Stitching Fold width: 20-30mm

Folding method: Single or Double

Stitching method: Double line stitching

Power Supply: 220V 3 phase 50Hz

Weight: 2000kg


◆Integration of cutting and stitching as a whole

◆Adopt Taiwan DELTA PLC control, more stable and reliable

◆Stitching head use China most famous brand, SHANGPENG DSGK20-9

◆The cloth wind-driven tension automatic control.

◆Cutting based on length setting and printing mark setting

◆Stitching machine thread break, automatically alarm.

◆Set the bag number, then it will auto collect and move the bags.
